Development of a Wireless Remotely Operated Underwater Vehicle

By Batsheva Gil, Connor Rieth, and Oriana Matney
Slide 1: Title slide showing project title, authors, and institutional affiliations for underwater vehicle development research

Slide-1

By: Batsheva Gil, Connor Rieth, and Oriana Matney

Mentor: Dr. Georgios Sklivanitis

Lab Researchers: Solomon Markowitz, Parker Wilmoth

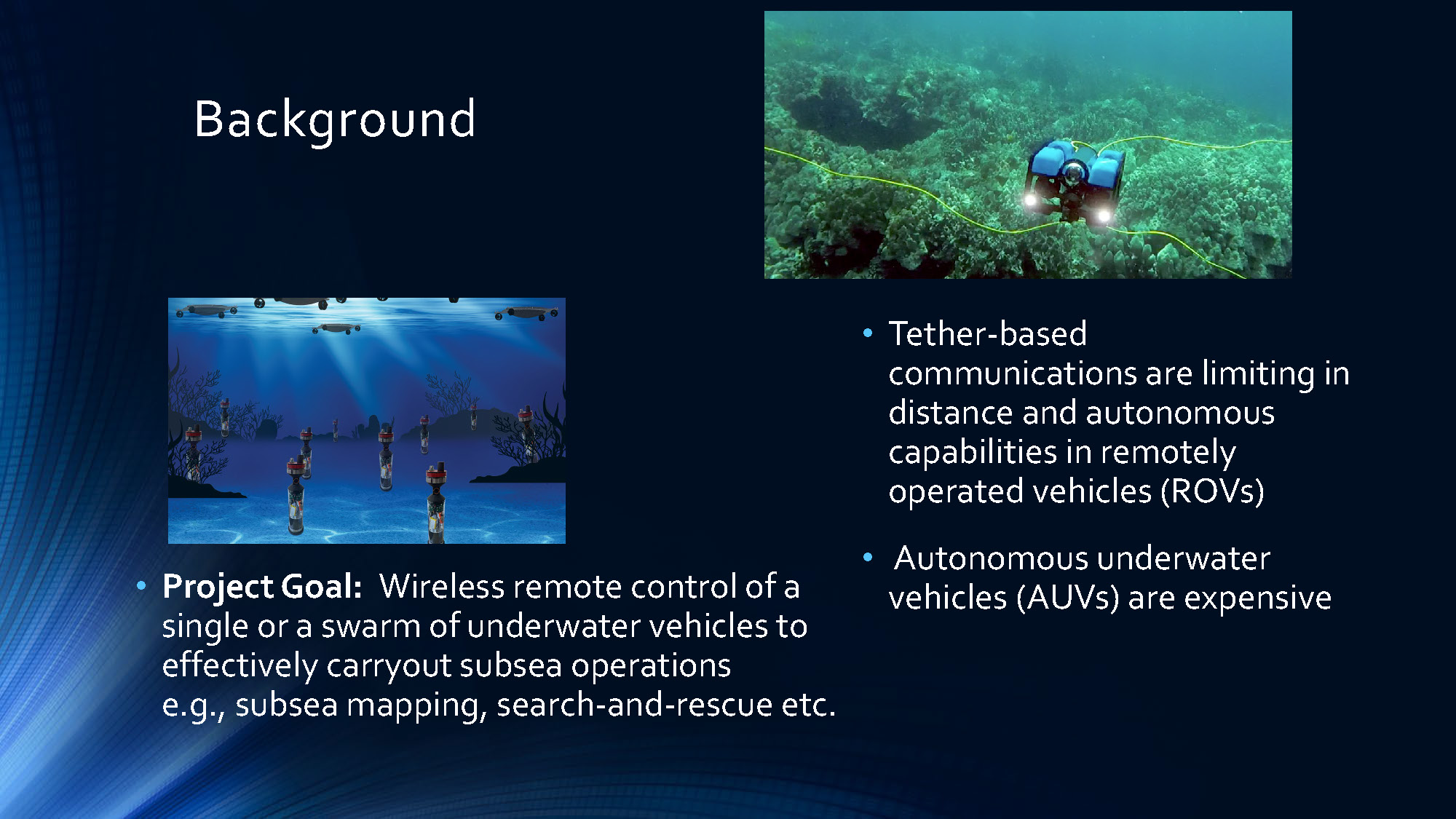

Slide 2: Background section describing limitations of tethered ROVs and project goals for wireless underwater vehicle control

Slide-2

Background

Project Goal:

• Wireless remote control of a single or a swarm of underwater vehicles to effectively carryout subsea operations e.g., subsea mapping, search-and-rescue etc.

• Tether-based communications are limiting in distance and autonomous capabilities in remotely operated vehicles (ROVs)

• Autonomous underwater vehicles (AUVs) are expensive

References include Blue Robotics BlueROV2 store page and IEEE research paper on underwater acoustic communications

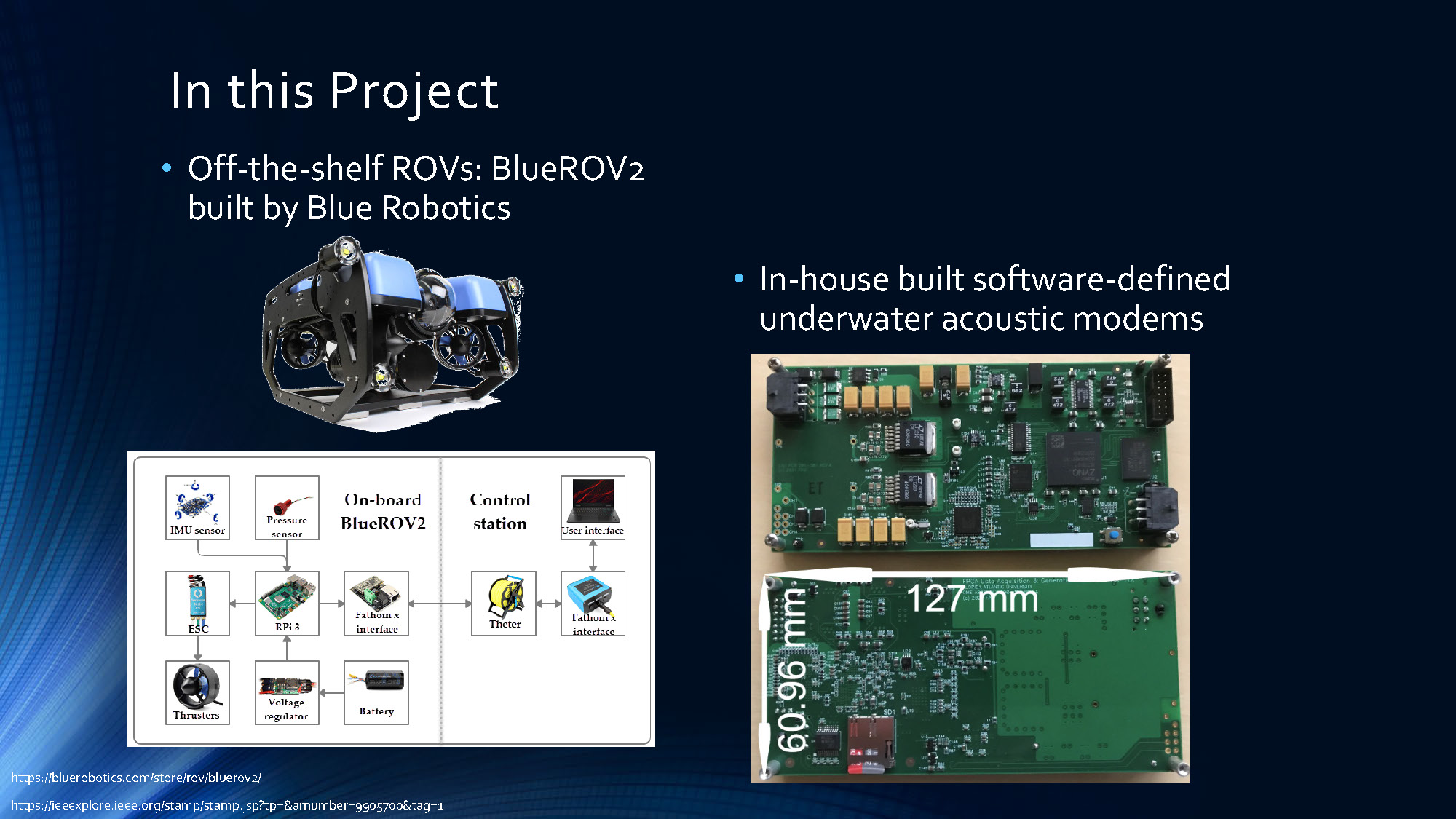

Slide 3: Related work and project components showing BlueROV2 vehicle and underwater communication methods comparison

Slide 3

In this Project

• Off-the-shelf ROVs: BlueROV2 built by Blue Robotics

• In-house built software-defined underwater acoustic modems

Image shows the BlueROV2 underwater vehicle with its distinctive blue frame and multiple thrusters.

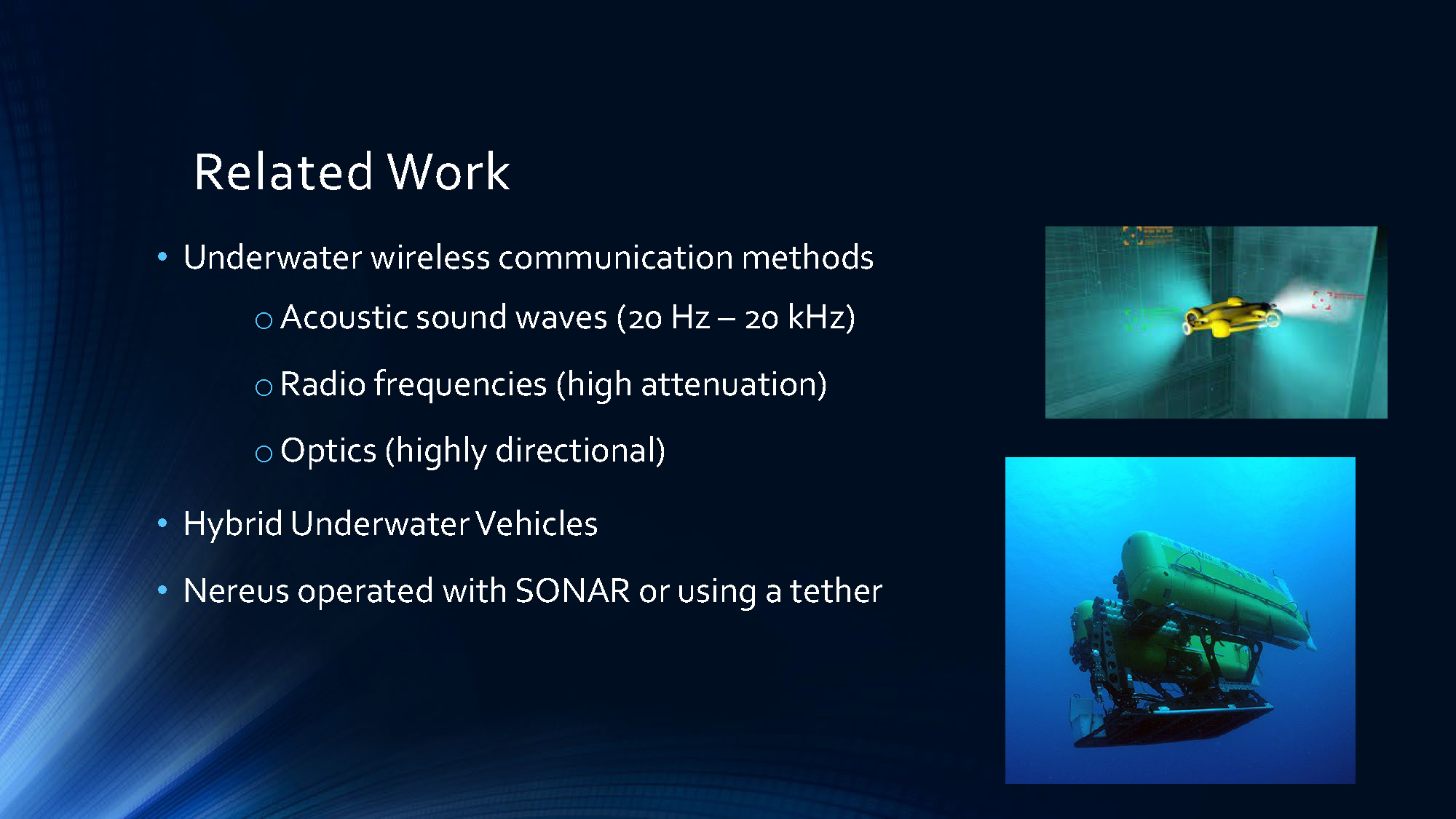

Slide 4: Related work and project components showing BlueROV2 vehicle and underwater communication methods comparison

Slide 4

Related Work

  • Underwater wireless communication methods
    • Acoustic sound waves (20 Hz – 20 kHz)
    • Radio frequencies (high attenuation)
    • Optics (highly directional)
  • Hybrid Underwater Vehicles
  • Nereus operated with SONAR or using a tether

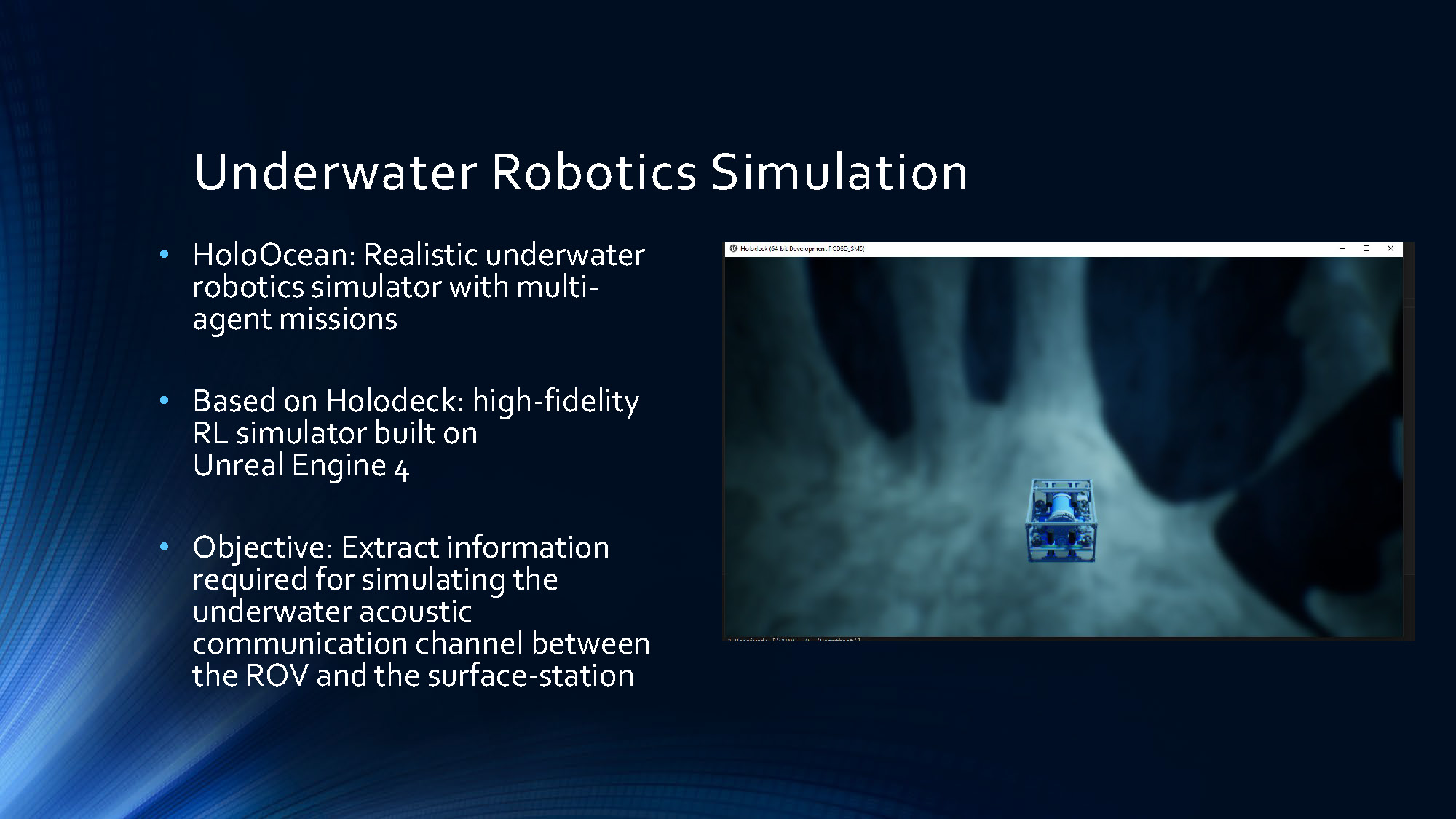

Slide 5: Underwater robotics simulation section describing HoloOcean simulator capabilities and objectives

Slide 5

Underwater Robotics Simulation

• HoloOcean: Realistic underwater robotics simulator with multi-agent missions

• Based on Holodeck: high-fidelity RL simulator built on Unreal Engine 4

• Objective: Extract information required for simulating the underwater acoustic communication channel between the ROV and the surface-station

The slide includes an underwater scene simulation showing the seafloor environment that would be used for testing ROV operations.

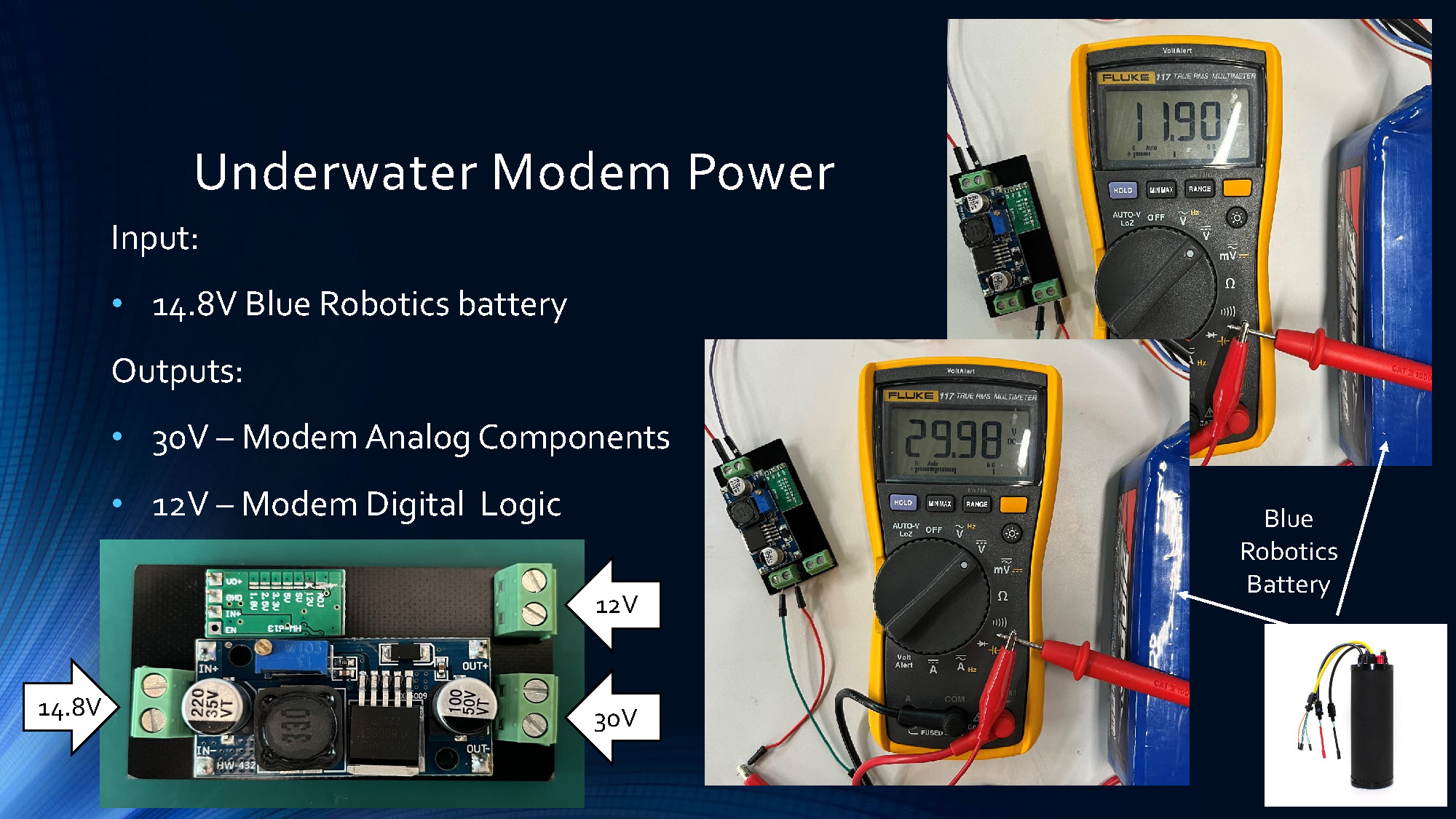

Slide 6: Power management diagram showing voltage conversion from 14.8V battery to 12V and 30V outputs for modem components

Slide 6

Underwater Modem Power

Input:

• 14.8V Blue Robotics battery

Outputs:

  • 30V – Modem Analog Components
  • 12V – Modem Digital Logic

The diagram shows a power management system converting the 14.8V input from the Blue Robotics battery to the required 12V and 30V outputs for different modem components.

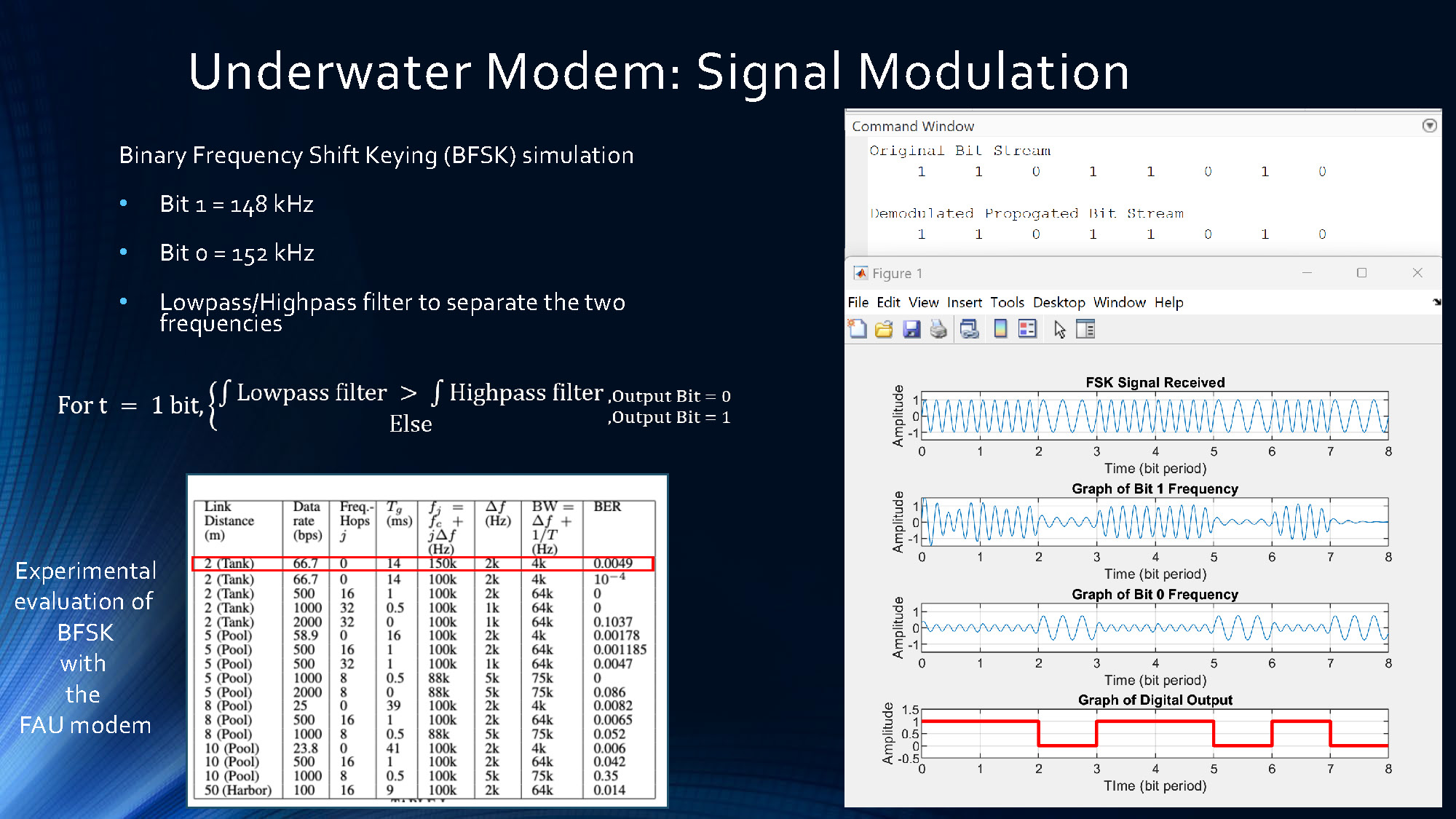

Slide 7: Signal modulation details showing Binary Frequency Shift Keying implementation with frequency specifications and experimental results

Slide 7

Underwater Modem: Signal Modulation

Binary Frequency Shift Keying (BFSK) simulation

  • Bit 1 = 148 kHz
  • Bit 0 = 152 kHz
  • Lowpass/Highpass filter to separate the two frequencies

Experimental evaluation of BFSK with the FAU modem with image of data in table

The slide includes signal waveform diagrams showing the frequency shift keying modulation technique used for underwater acoustic communication, with distinct frequencies representing binary 1 and 0 bits.

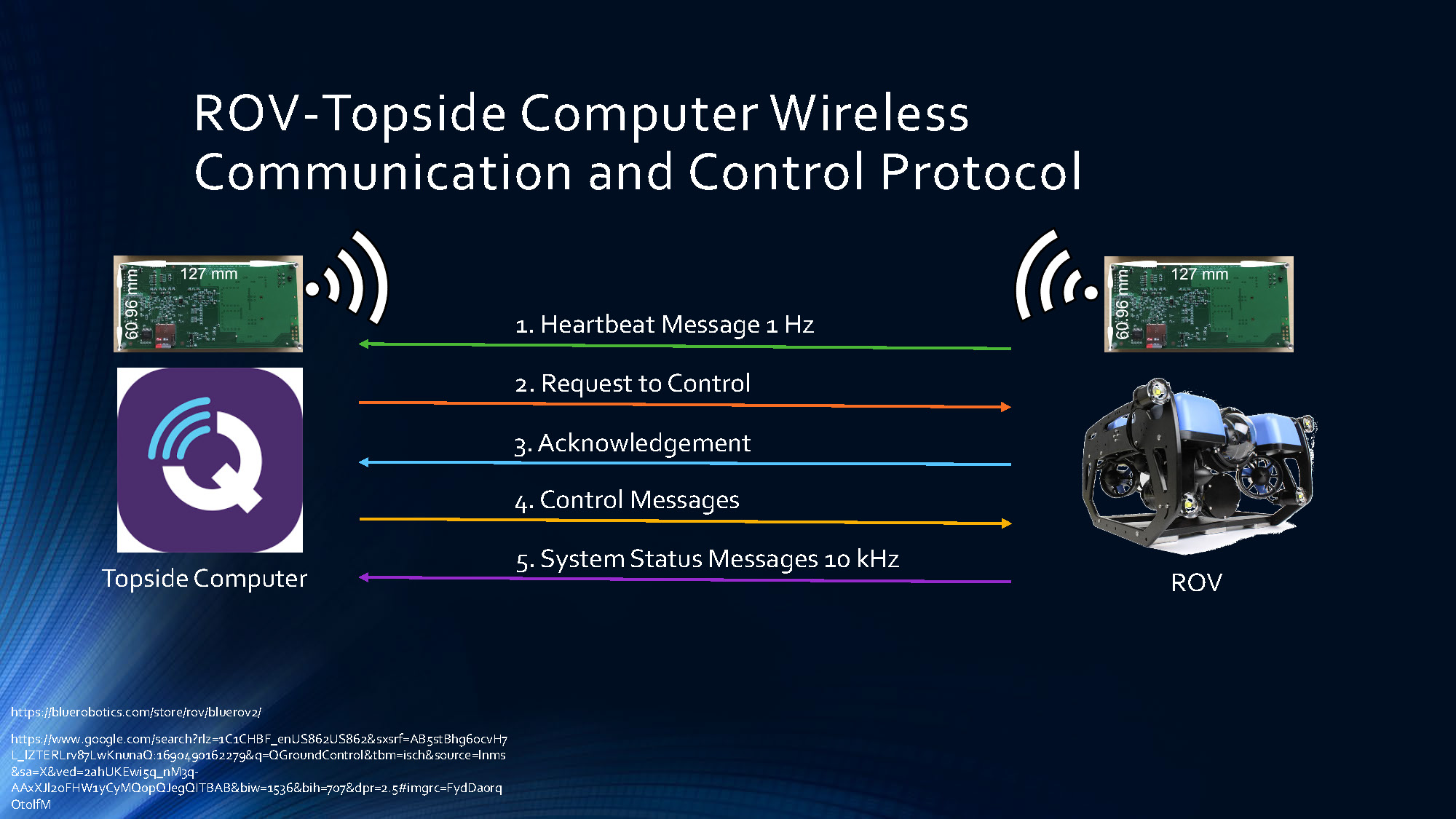

Slide 8: Communication protocol diagram showing message flow between ROV and topside computer with QGroundControl interface

Slide 8

ROV-Topside Computer Wireless Communication and Control Protocol

The communication protocol includes the following message sequence:

  1. Heartbeat Message 1 Hz
  2. Request to Control
  3. Acknowledgement
  4. Control Messages
  5. System Status Messages 10 kHz

The diagram shows bidirectional communication between the ROV and Topside Computer, with QGroundControl software interface shown as the control system for the underwater vehicle operations.

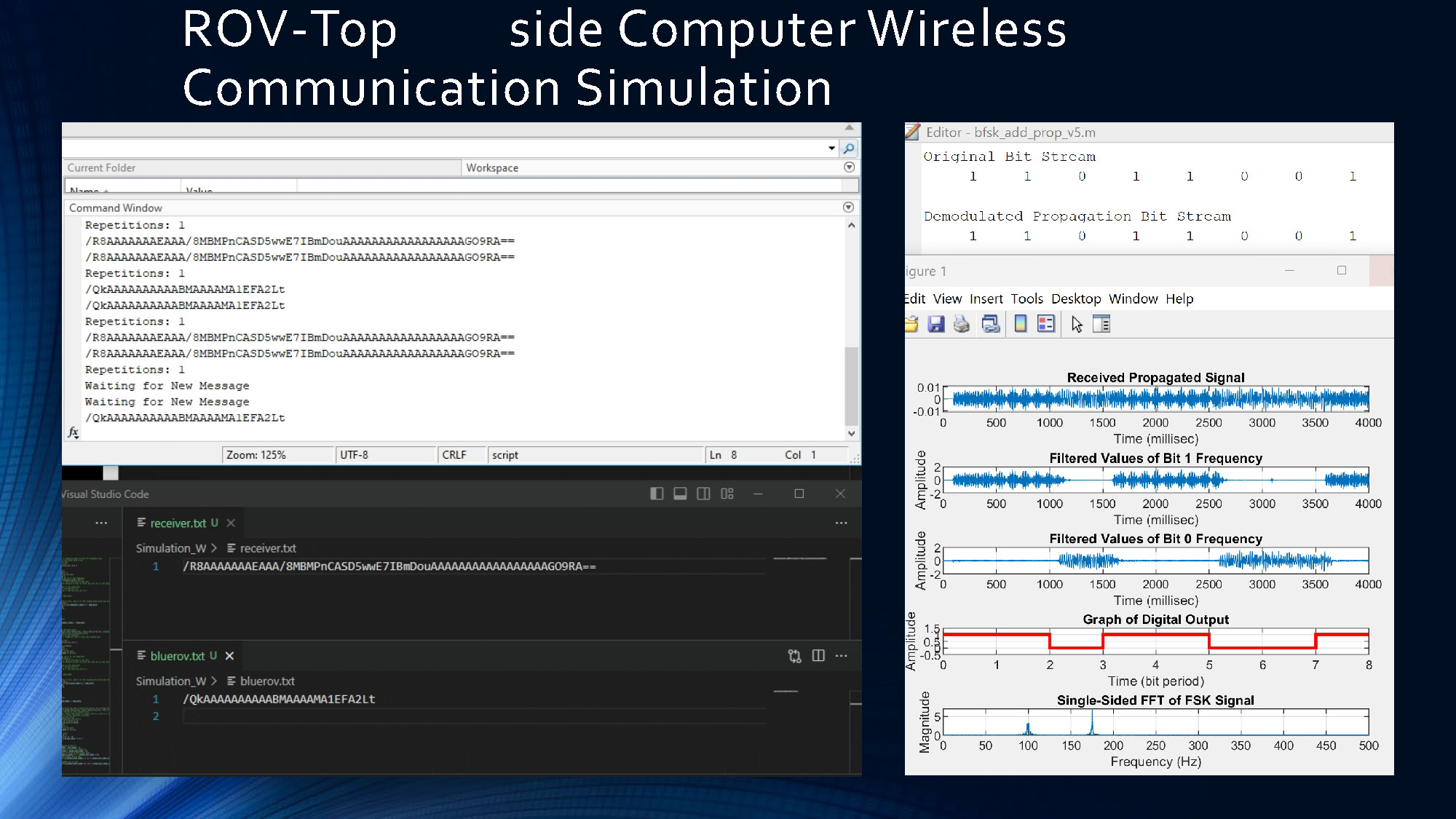

Slide 9: Communication simulation results showing wireless protocol testing between ROV and topside computer systems

Slide 9

ROV-Topside Computer Wireless Communication Simulation

This slide presents simulation results for the wireless communication protocol between the ROV and topside computer. The simulation demonstrates the feasibility of the proposed communication system and validates the message exchange protocols described in the previous slide.

The results show successful implementation of the heartbeat messages, control requests, acknowledgements, and status updates in a simulated underwater environment.

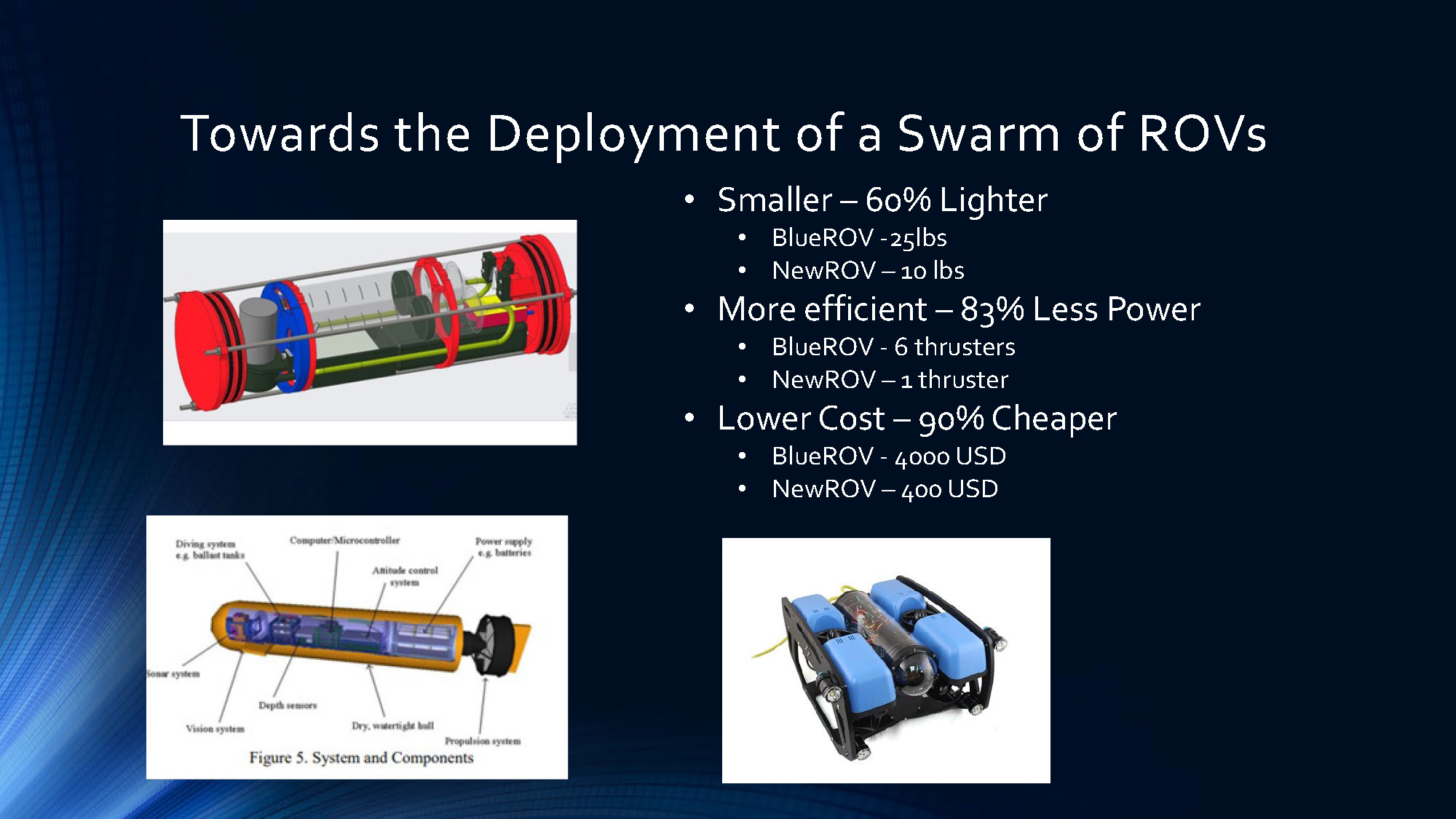

Slide 10: New ROV design specifications comparing size, efficiency and cost improvements over BlueROV2

Slide-10

Towards the Deployment of a Swarm of ROVs

Comparison: BlueROV vs New ROV

Smaller – 60% Lighter

  • BlueROV - 25lbs
  • NewROV – 10 lbs

More efficient – 83% Less Power

  • BlueROV - 6 thrusters
  • NewROV – 1 thruster

Lower Cost – 90% Cheaper

  • BlueROV - 4000 USD
  • NewROV – 400 USD

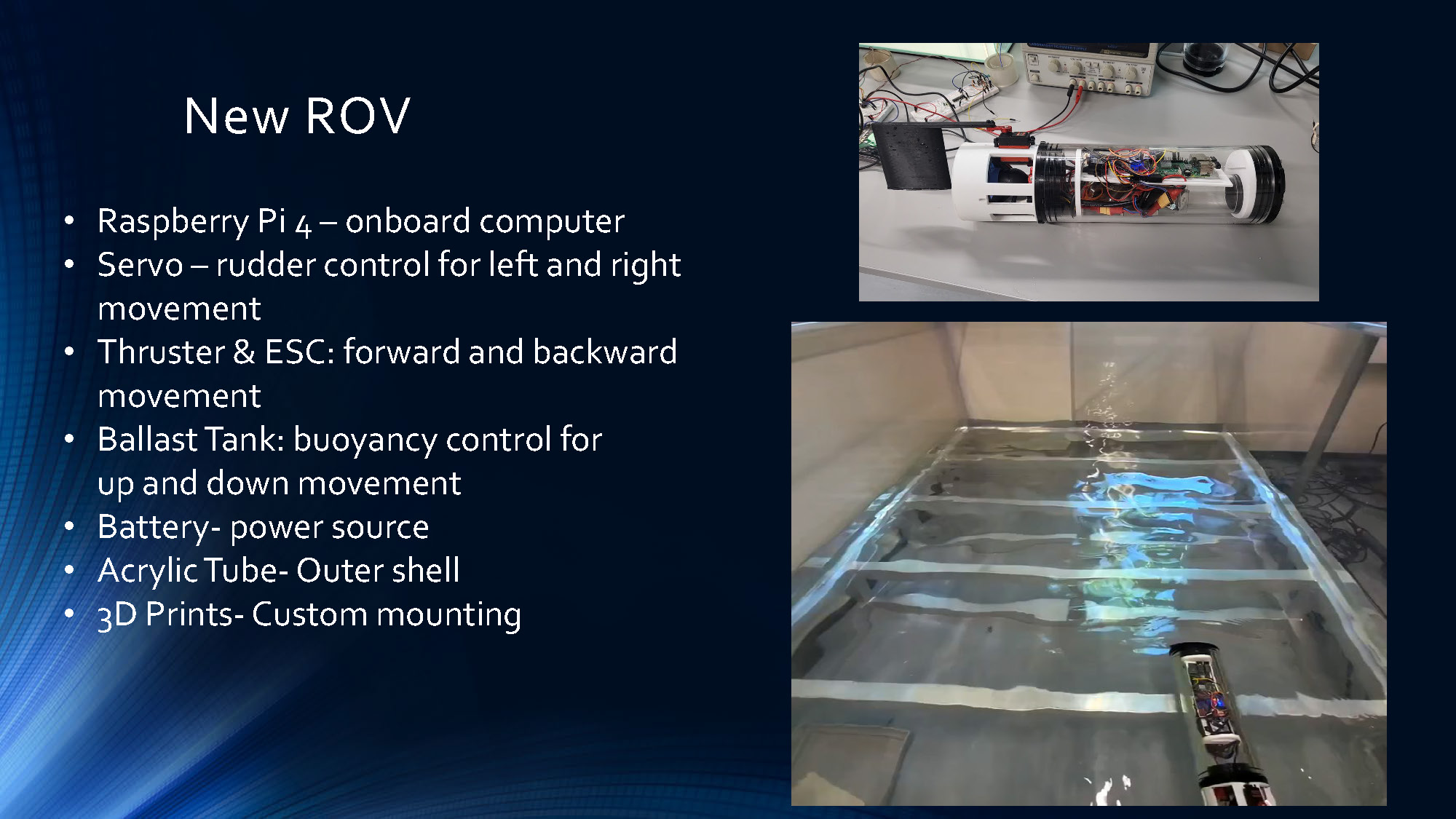

Slide 11: New ROV technical specifications and component breakdown including Raspberry Pi computer and ballast tank system

Slide-11

New ROV

Components:

  • Raspberry Pi 4 – onboard computer
  • Servo – rudder control for left and right movement
  • Thruster & ESC: forward and backward movement
  • Ballast Tank: buoyancy control for up and down movement
  • Battery- power source
  • Acrylic Tube- Outer shell
  • 3D Prints- Custom mounting

The slide shows the compact design of the new ROV with its cylindrical acrylic housing and integrated components for autonomous underwater operations.

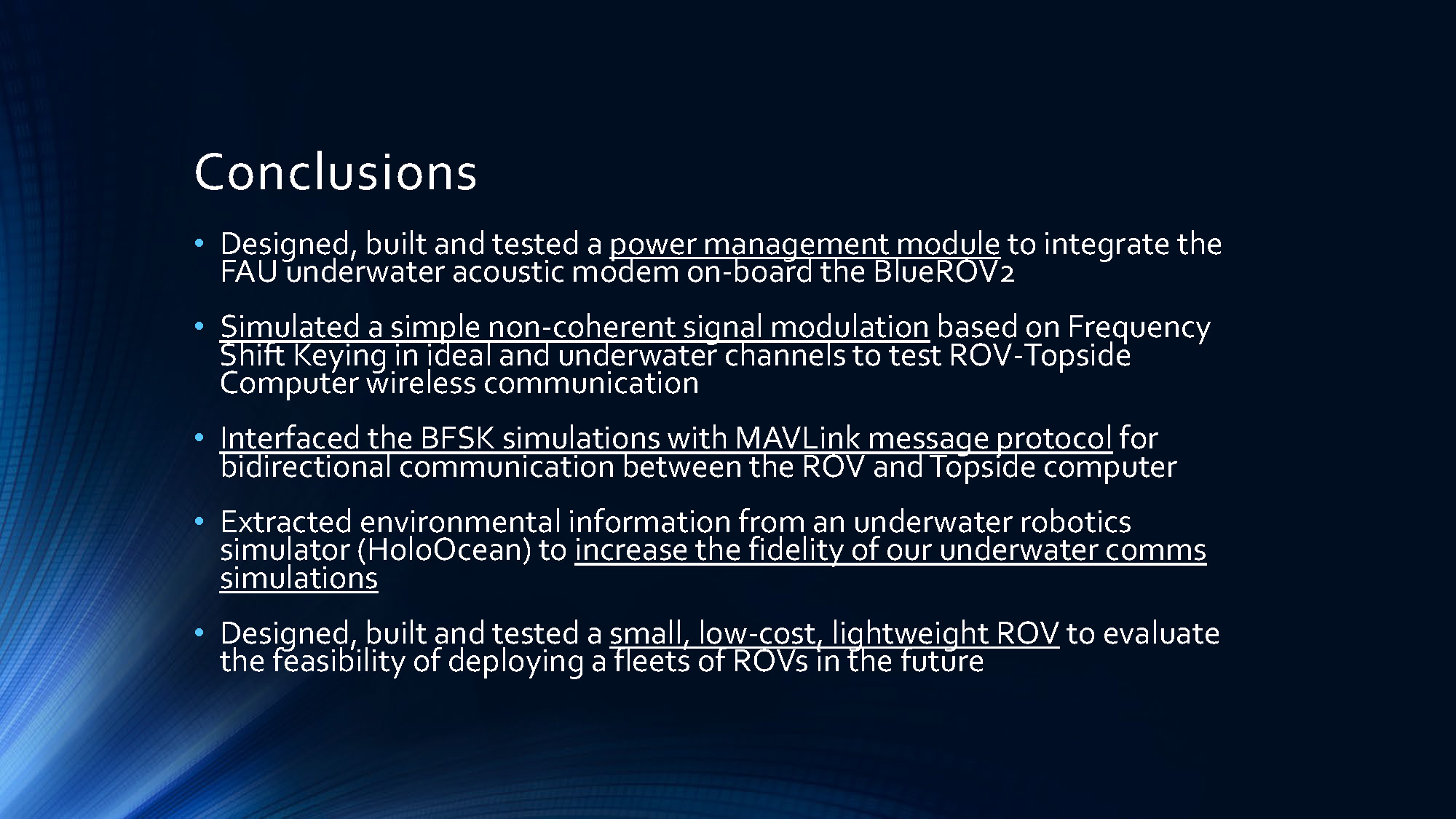

Slide 12: Project conclusions summarizing achievements in power management, communication protocols, and ROV development

Slide-12

Conclusions

  • Designed, built and tested a power management module to integrate the FAU underwater acoustic modem on-board the BlueROV2
  • Simulated a simple non-coherent signal modulation based on Frequency Shift Keying in ideal and underwater channels to test ROV-Topside Computer wireless communication
  • Interfaced the BFSK simulations with MAVLink message protocol for bidirectional communication between the ROV and Topside computer
  • Extracted environmental information from an underwater robotics simulator (HoloOcean) to increase the fidelity of our underwater comms simulations
  • Designed, built and tested a small, low-cost, lightweight ROV to evaluate the feasibility of deploying a fleets of ROVs in the future

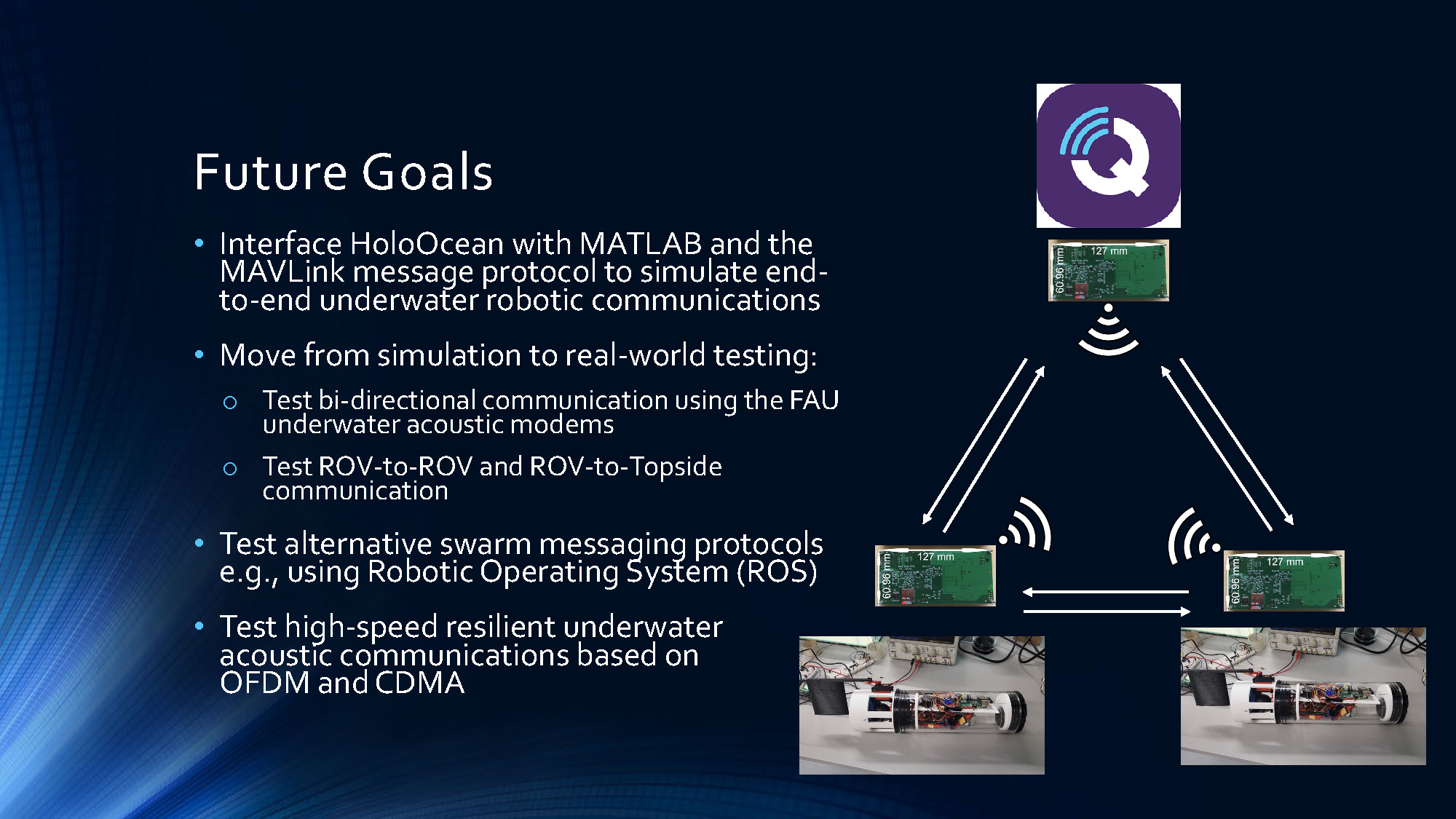

Slide 13: Future goals outlining next steps for real-world testing, alternative protocols, and advanced communication methods

Slide-13

Future Goals

  • Interface HoloOcean with MATLAB and the MAVLink message protocol to simulate end-to-end underwater robotic communications
  • Move from simulation to real-world testing:
    • Test bi-directional communication using the FAU underwater acoustic modems
    • Test ROV-to-ROV and ROV-to-Topside communication
  • Test alternative swarm messaging protocols e.g., using Robotic Operating System (ROS)
  • Test high-speed resilient underwater acoustic communications based on OFDM and CDMA
Last slide: Contains plain text stating 'End of presentation. Click the right arrow to return to beginning of slide show.'

End of Presentation

Click the right arrow to return to the beginning of the slide show.

For a downloadable version of this presentation, email: I-SENSE@FAU.
